ANALUISA is a 20'1" Cuban fishing launch designed by Luciano Cuadras Fernandez. ANALUISA was used by Cubans to escape from Cuba to Key West, Florida in the summer of 1994. Additional information can be found in The Log of Mystic Seaport, Summer 1997, Vol. 49, No. 1. Plans drawn by Mystic Seaport in 1995.
Builder: Fernandez, Luciano Cuadras
Designer: Fernandez, Luciano Cuadras
Design drawn by: Hughes, R.; Allingham, R.
Lines taken by:
Vessel Type:
Date: 1959
Beam: 7’ 7”
Draft:
LOA: 20’ 1”
LWL:
Vessel Weight:

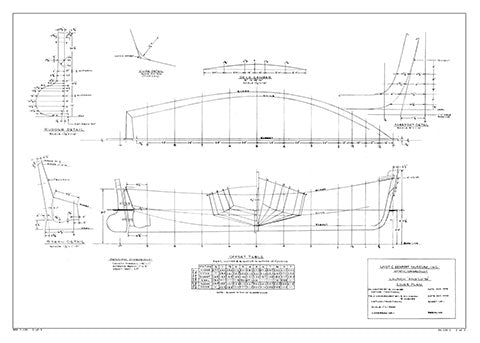

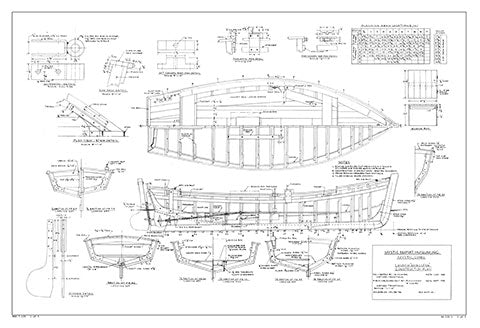

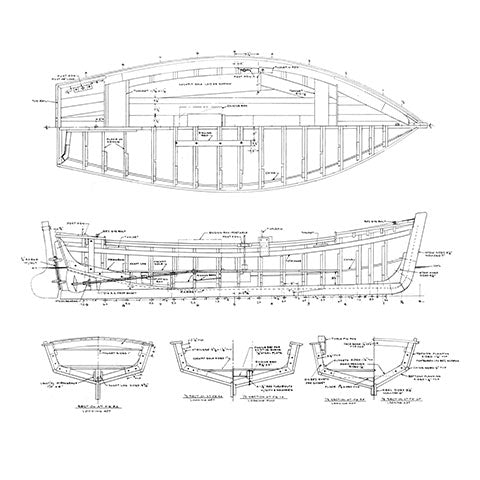

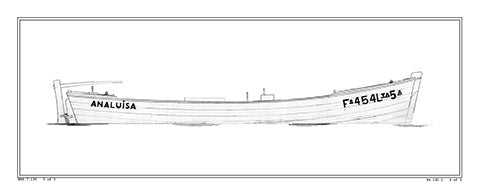

Plan Includes: 3 sheets: lines, construction, offsets, outboard profile
